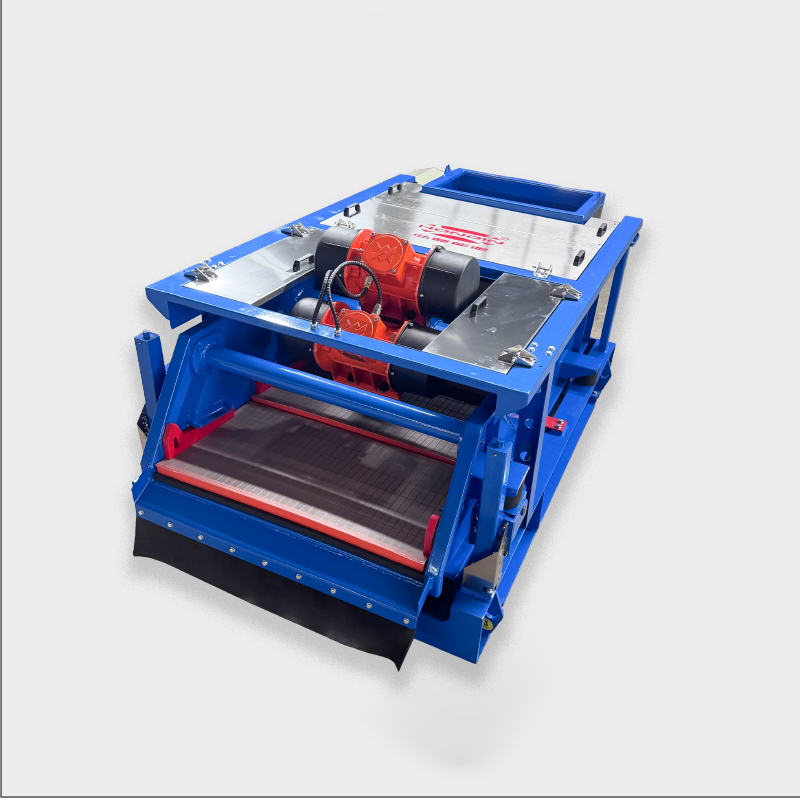

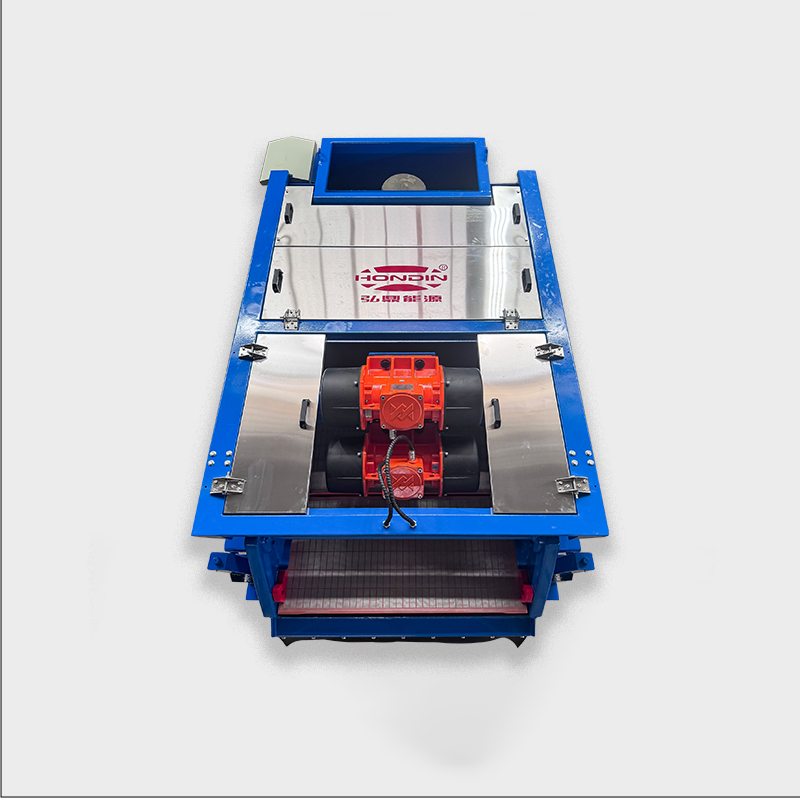

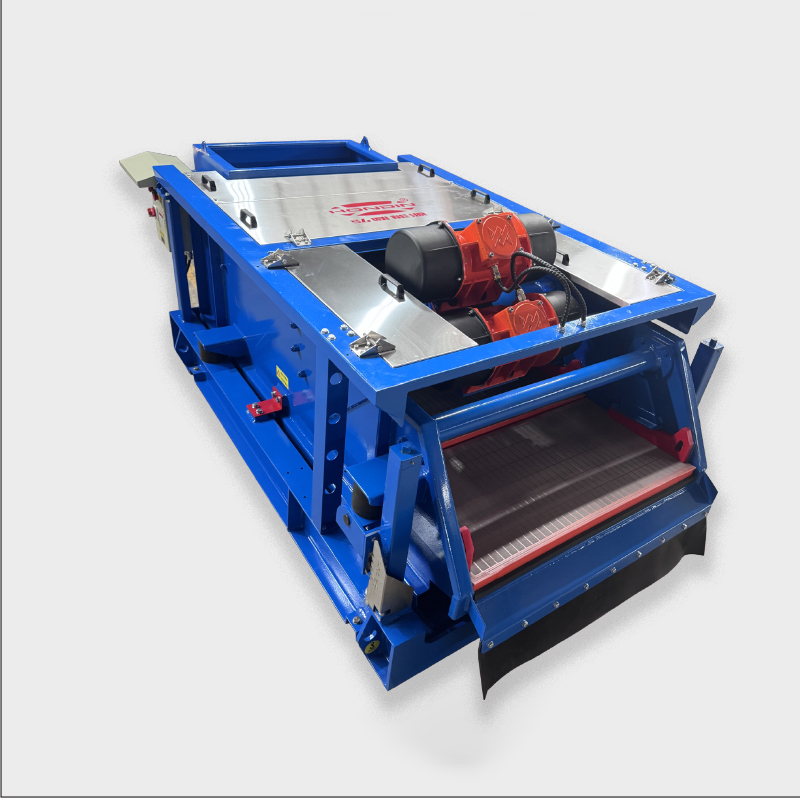

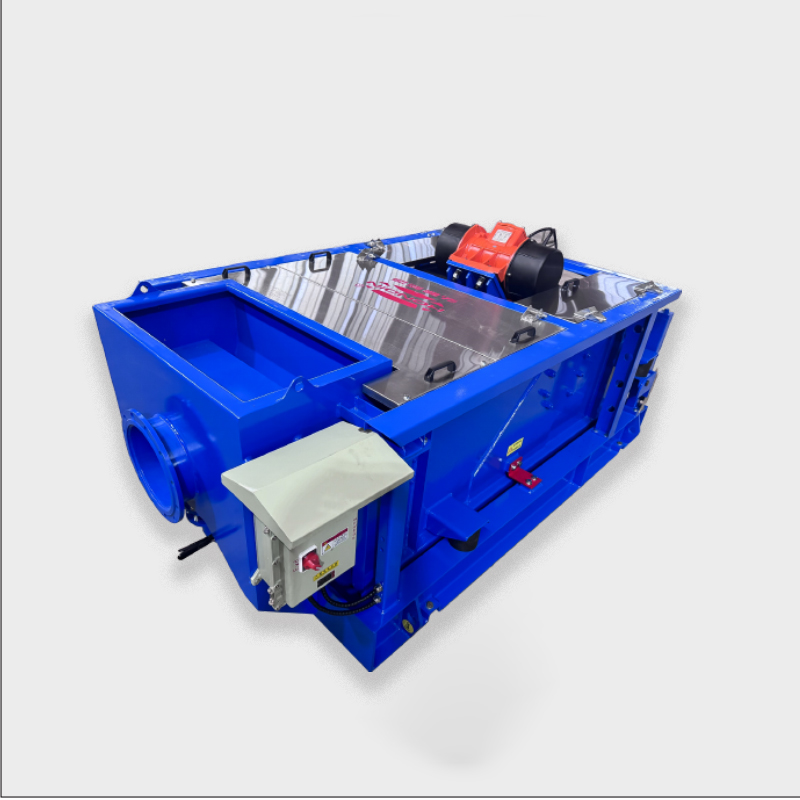

高频直线振动筛
    发布时间: 2015-01-09 09:32

钻井液振动筛是钻井泥浆处理一级固控设备,弘鼎能源可根据实际处理量大小生产不同筛网数量的振动筛来满足客户需求!

       钻井液振动筛是钻井泥浆固控系统的第一级固控设备,也是钻井泥浆系统中最重要的固控设备,公司可根据客户的需求提供双联或三联振动筛产品。公司同时向用户提供第三代直线振动筛和第四代平动椭圆振动筛,以及双轨迹振动筛(直线和平动椭圆变轨)

Shale shaker is the first phase solids control equipment in drilling mud system, also the core equipment for the solids control system. HONDIN provides tandem shale shaker and triple combination shale shaker, we also provide the third generation linear motion shale shaker and the fourth generation balanced elliptical motion shale shaker.


       弘鼎能源生产的泥浆振动筛可用于石油钻井、煤层气钻井、定向非开挖、河道清淤、钻井废弃物处理、泥浆不落地处理、尾矿筛分、煤泥净化、污水净化等行业。

        Hondin energy production of mud vibrating screen can be used for oil drilling, coal bed methane drilling, directional trenchless, river dredging, drilling waste treatment, mud does not fall to the ground treatment, tailing screening, slime purification, sewage purification and other industries.


       可根据根据客户需要配套短电机或者长电机。

       Short motor or long motor can be matched according to customer needs.


产品特点/Product feature:

 采用ANSNY有限元分析,优化结构设计
Adopt ANSYS
limited element analysis tooptimize structure
 采用SS304Q345高强度合金材料
Adopt SS304 or Q345 high-strength alloy material
 筛箱整机热处理
Heat treatment on complete shaker deck
 表面重防腐涂层
Shaker surface is coated with heavy anticorrosive paint
 可选用欧力、马丁、卓尔能及国产振动电机
Vibration motor is from Oli/Martin/Drennan/Domestic


性能参数/Parameter:



型号 Model

HDZS584

HDZS583

动轨迹 Vibrating Mode

直线 Linear Motion

直线 Linear Motion

电机功率 Motor Power

2×1.8/2.2Kw

2×1.5/1.8/2.2Kw

动强度 Vibrating Strength

≤7.8G(Adjustable)

≤7.8G(Adjustable)

 Double Amplitude

6.0~7.2mm

6.0~7.2mm

处理量 Treating Capacity

113~136m³/h(500~600GPM)

100~120m³/h(600~750GPM)

筛箱调节角度 Deck Adjustment

-1°~5°

-1°~5°

常用电制 Normal Power

380V/50Hz460V/60Hz Or Customized

380V/50Hz460V/60Hz Or Customized

筛网面积 Screen area

2.72

2.04

筛网数量 Screens of Deck

4 Panel

3 Panel

围堰高度 Weir Height

750 mm

850 mm

启动器 Starter

磁力启动器 Magnetic starter

磁力启动器 Magnetic starter

动噪音 Decibels

85db

85db

重量 Weight

1680kg

1600kg

尺寸 Dimension

2920×1780×1460 mm

2335×1780×1400 mm

备注 Remarks

处理量在泥浆密度:1.2g/cm³,粘度45s 筛网40mesh测得

Treating capacity test from mud:1.2g/cm3density & viscosity 45s &40mesh
